EG STARTS 1 Player LED Arcade DIY Part Kit USB Encoder to PC Gamepads Ellipse & Oval Style Bat Joystick + 5V LED Arcade Buttons for Video Games Mame Raspberry Pi Arcade1up (Clear Mix Colors)

Price: $25.88
(as of Jun 26, 2024 13:40:55 UTC – Details)

Product Description

This is a LED Arcade Game DIY Parts for 1 Player DIY Project.

The encoder support all the windows systems!

Each Encoder have its own USB Cable to make sure that Multiplayer can play the games in the same condition!

The Joystick is a 8 way professional joystick!

The buttons are 5V LED Illuminated push buttons with build-in Microswitches inside.

The buttons default as lighted all the time.

If you purchase one of this item,What will included in the package

1x Zero Delay LED USB Encoder

1x USB Cable

1x 5Pin wires for Joystick

10x 2Pin wires for Buttons Switch

8x 30mm Larger 5V LED Push Buttons

2x 30mm larger White 5V LED Push Buttons( 1 Player + Coin )

1x 5Pin 8 way joystick

1x Instructions

Tips for installation

1. Plese read our user manual before starting your diy actions.

2. It’s very important! Connect Joystick’s 5Pin cable to the 5Pin slot that opposite the USB-B terminal. A lot people connect the joystick to the wrong 5Pin slot.

3. There is no need separate the button’s functions when you connect wire to push buttons and encoder board exept you want add ” Auto-Fire”, ” Tubro”, “Clear” & ” Mode” Functions. All the fight button functions can be set in MAME or RetroPie. “Auto-Fire”, “Tubro”,”Clear” & “Mode” Functions have its own slot on the encoder board.

4. For Professional Players. We suggest your change all the buttons and joysticks into SANWA Brand or SEIMITSU Brand.

Tips for New User:

1. The item need work with MAME emulator. So before your build your own project, please download one to work with the parts.

2. If you use this kit to build your own Raspberry Pi Retropie Projects. Please search the steps before your DIY.

Product Display

Make your own DIY game dreams.

This product does not include a game box

Wiring method

Optimize the buttons interface modePlug and play for easy plugging and unpluggingSolve the wiring problem that plagues 90% of players.Let the player DIY become simple from now on.

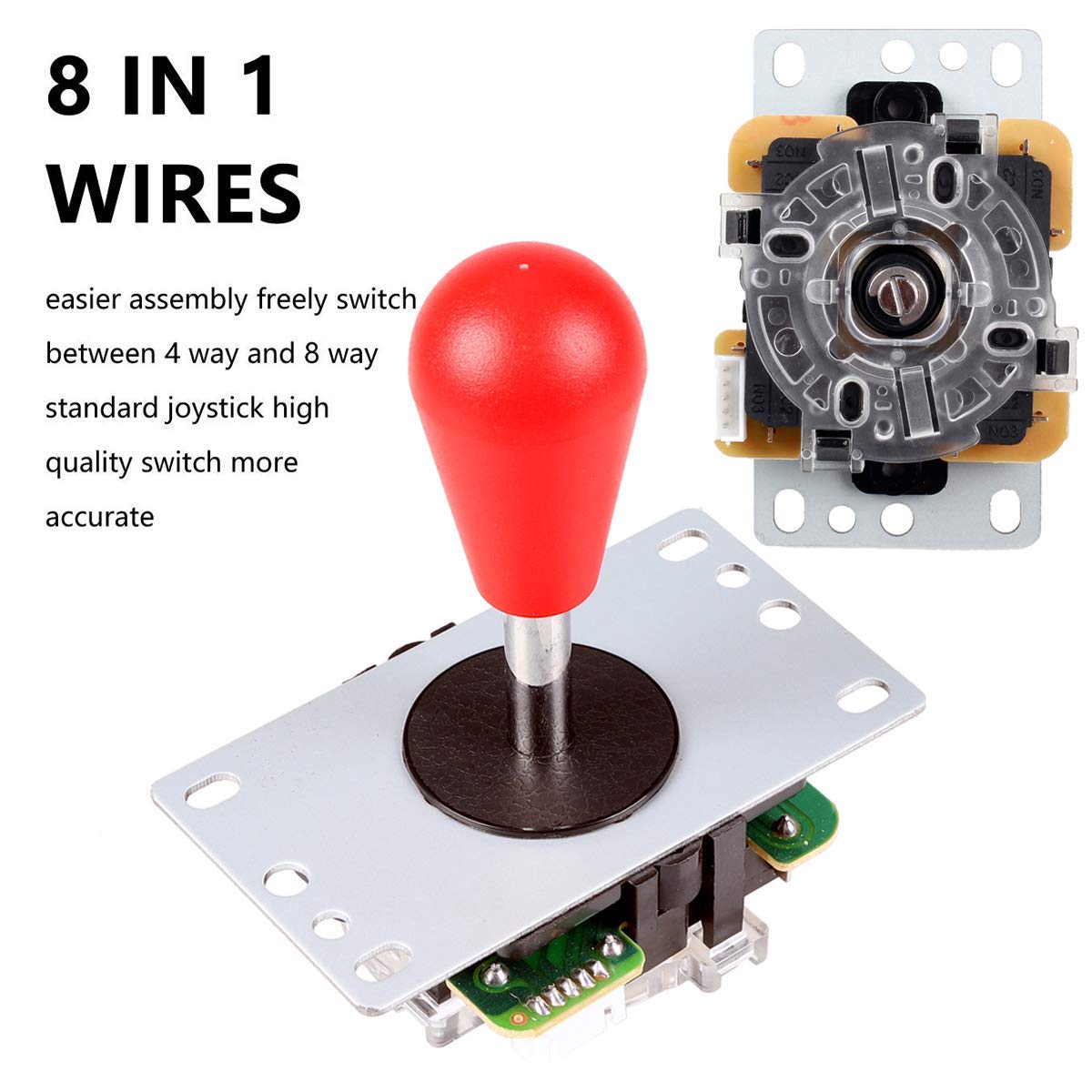

Joystick

Can replace the different ball

It’s hight quality 5Pin 8-ways joystick model. The service life reaches 1 million clicks.New interface mode. Reject the wrong interface.

Joystick bottom

Applicable to the wooden shell and iron shell machine, The return of flexible, more wear-resistant; Iron base parallel cone; square gate

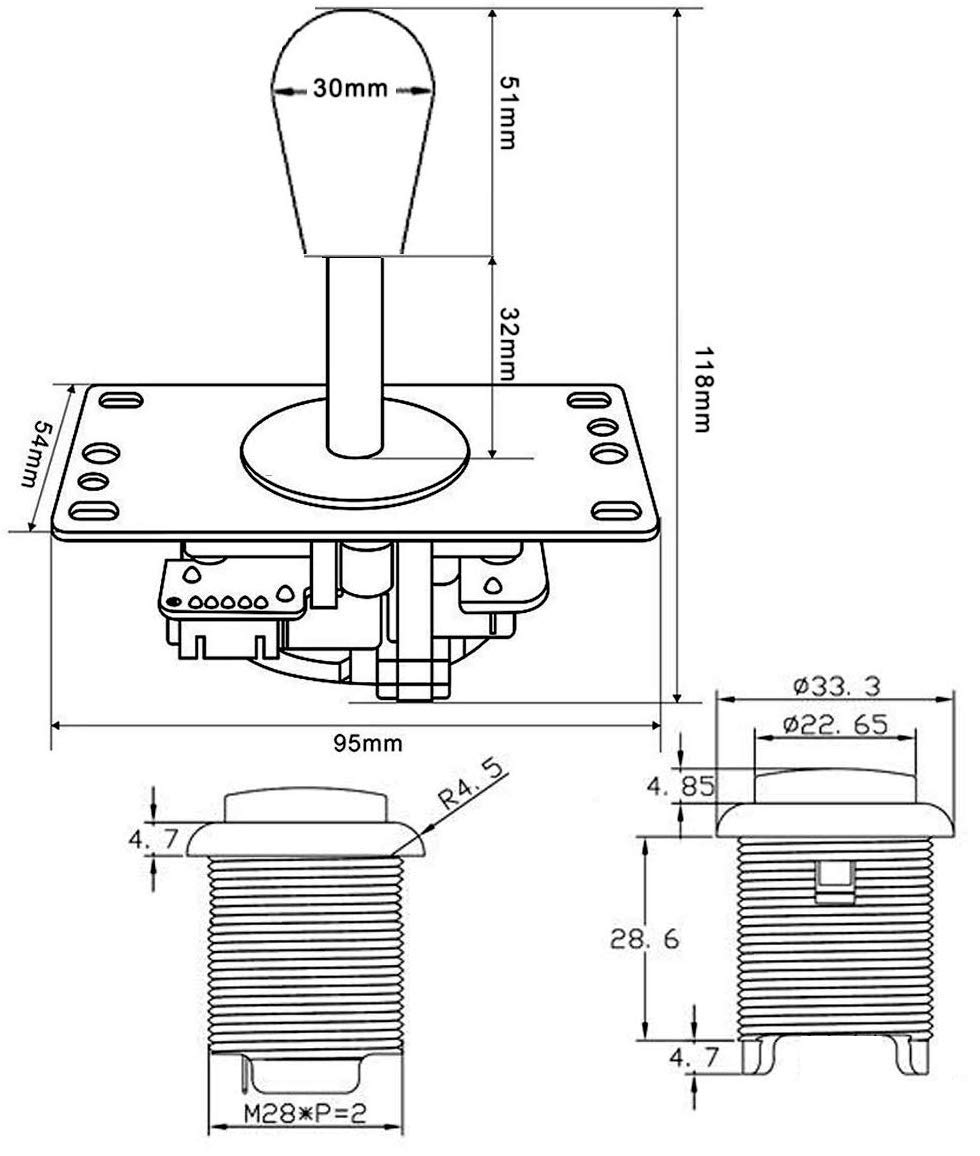

Specification map

All the silver conduction point, contact sensitive; within the iron bar for the stainless steel; 2.0 thickness of the electrolytic plate; dust washers; ball detachable, can replace the different ball;

Buttons

High quality full light LED Push Buttons

High quality material manufacturingHigh temperature resistant plastic partsHD translucent button body & coverRotary designIndividually independent stickers.Buttons can be opened separately to add brand LOGO. Create your own style.Each button has 3Pin connectors.

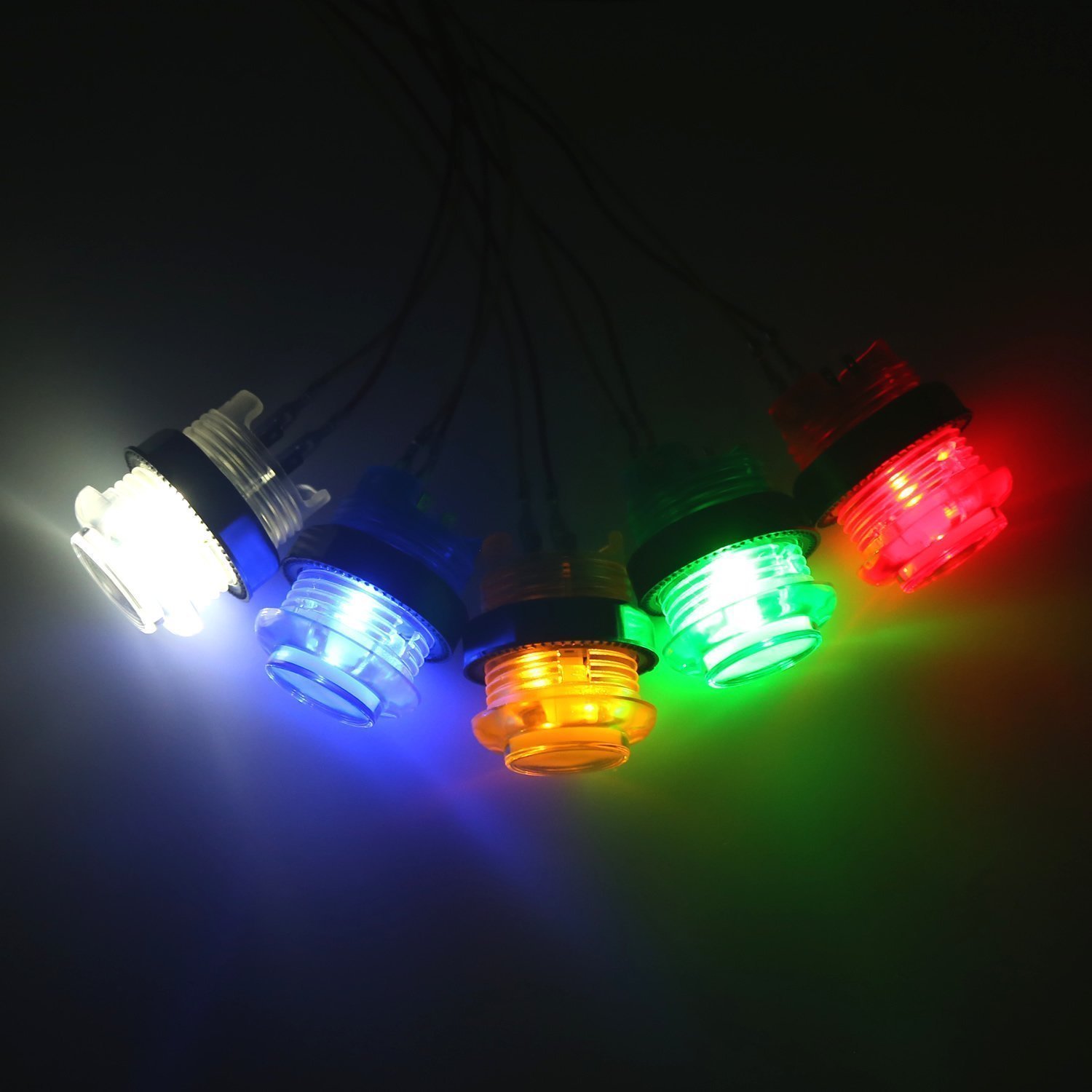

Bright LED Buttons

The button is set to light all the time.The maximum voltage is 5V.Plucked gold-plated, gold-plated contacts, micro-sound, long life, test life of up to 10 million timesDo not use more than 5V of voltage, otherwise it will burn the button !!

Specification map

Professional fighting buttonsHigh quality light-transparent color powder is added to ABS materialMake the button more crystal clear. Brighter and more uniform.Comes with lighting effects, can be used for wood console, metal panels, with the use of various types of animation game

USB Controllers

USB Encoder

The USB Cable: 87InchThe 5Pin Cable: 7.9 InchThe Buttons Cable: 7.9 InchUSB encoder imported SMD components. Work more smoothly. Longer life expectancy. Lower energy consumption.

Button Connection Display

Please pay attention to the direction of the mark when connecting the button. And the button must be connected as shown in the picture, otherwise they will not work!Please read the user manual with the DIY kit before starting your project.

PCB Board

USB Print TerminalsK1-K12 Push Buttons Terminals5Pin Joystick Terminals2Pin Joystick Terminals (Not Used)Auto, Turbo, Clecet, Mode Terminals6 and 6-1 is Output 5V Power Terminals (Connect the button LED light interface.)

Quality: Excellent Control USB Encoder. High Quality 8 way joystick. LED Buttons Good lighting effects.
Fonction: DC 5V Arcade Illuminated Pushbutton, 8 ways Joystick Use Microswitch with gilded contact leg, excellent electronic performance, long life, reliability tested to 1,000,000 cycles!
Made with highest quality materials! Heat resistant plastic! Environmentally friendly metal!
Package: 175 x 95 x 115mm. Each button and joystick are individually packaged
Support: Perfect LED Kit for Windows Arcade Games PC Games DIY Project Arcade Raspberry Pi for RetroPie system MAME
