Stereo RCA to Stereo RCA Jacks Audio Extender Over Cat 5e Cable. Plug and Play

Price: $10.00
(as of Jun 19, 2024 08:04:36 UTC – Details)

Product Description

Easily Transfer Audio Stereo RCA to Stereo RCA Audio Extender Over Cat5 or Cat 6

Details on this product These audio extender’s are used and sold in pair. Each package consists of both ends that the cat 5 or cat 6 cable plugs into These are perfect and provide a low cost-effective solution for extending audio for long distance. Installation – It is simple. Just plug in the cable to each adapter Plug them into your devices and then – That’s it your done Please note – These need to have a direct line hooked up and not run through any switch or router.

Specifications –

Audio Connectors: Stereo RED White + Stereo RED WhiteRJ45 Connectors: 2 ( 1 for transmitter and 1 for receiver unit)Max Transmission Distance: 240 feetBandwidth: 10 Hz to 50 kHz +/-3 dBOperating Temperature: -10C ~ +50C – Environment Humidity: 0 ~ 95%Wire Type: UTP Category 5, 5e, or 6Female Plug Dimension: 0.5″(L)x0.5″(W) x1″(D)

RCA Stereo Jacks to RCA Stereo Jacks over Cat 5e or Cat 6

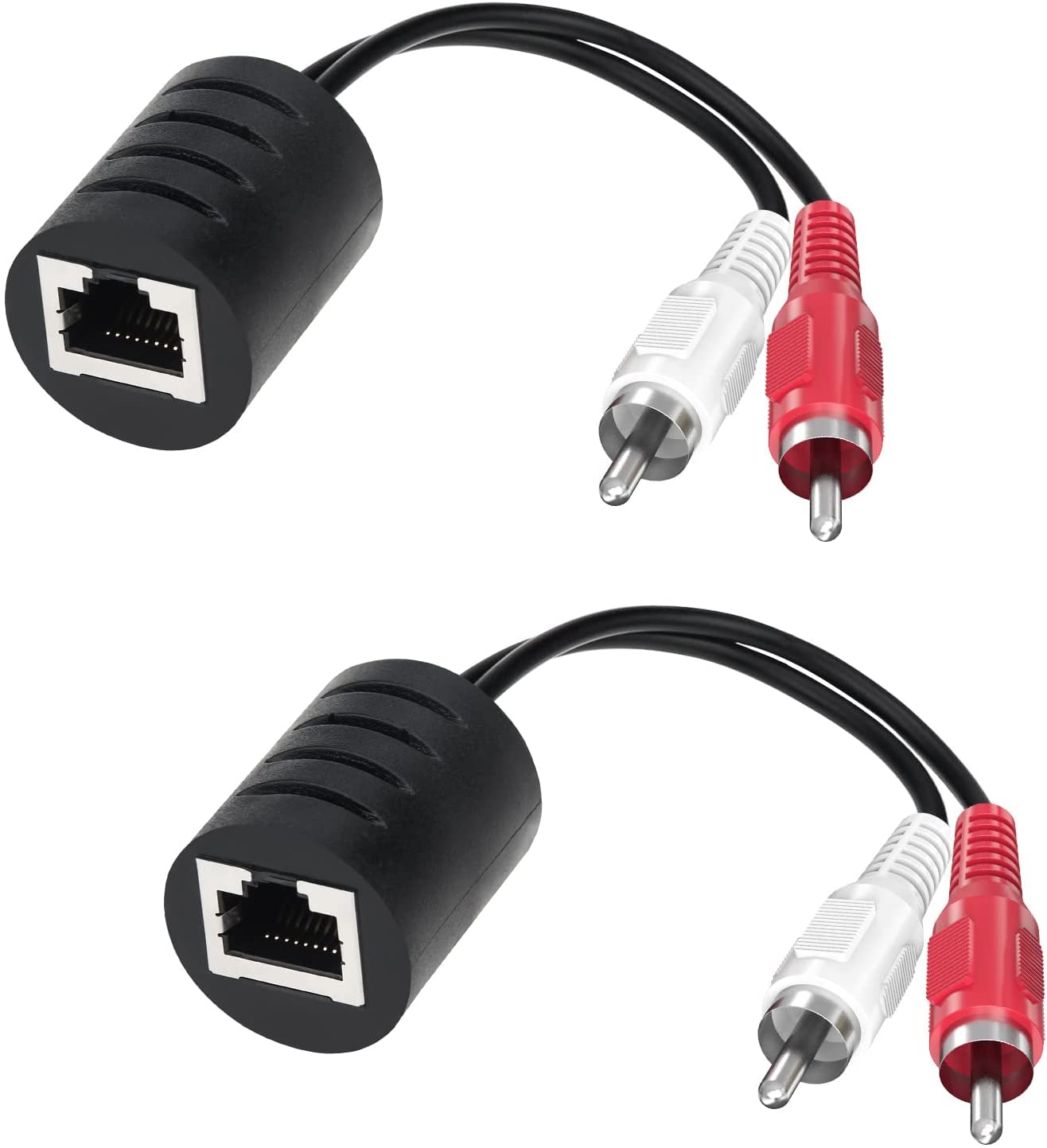

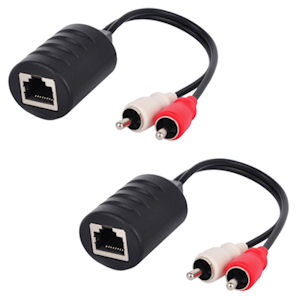

This is a set of 2 – 1 for sending and 1 for receiving.

Bi-Directional Stereo to Stereo Balun (TX/RX Pair). They are interchangeable so either one can be used as TX or RX.

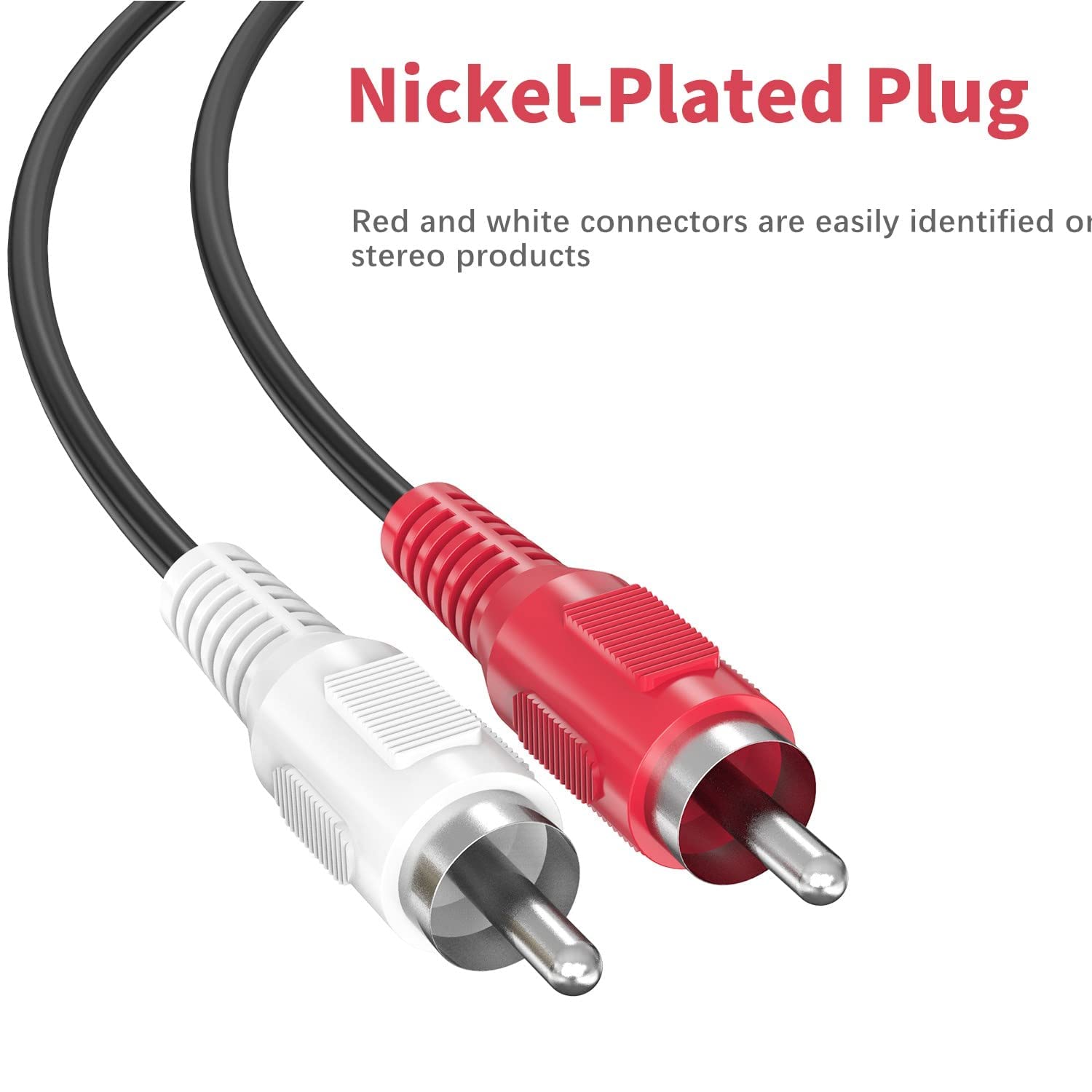

Stereo is commonly found on most stereo products and are easily identified as the Red White Jacks on Stereos and other audio products.

Cost effective and easy to use – Plug and Play

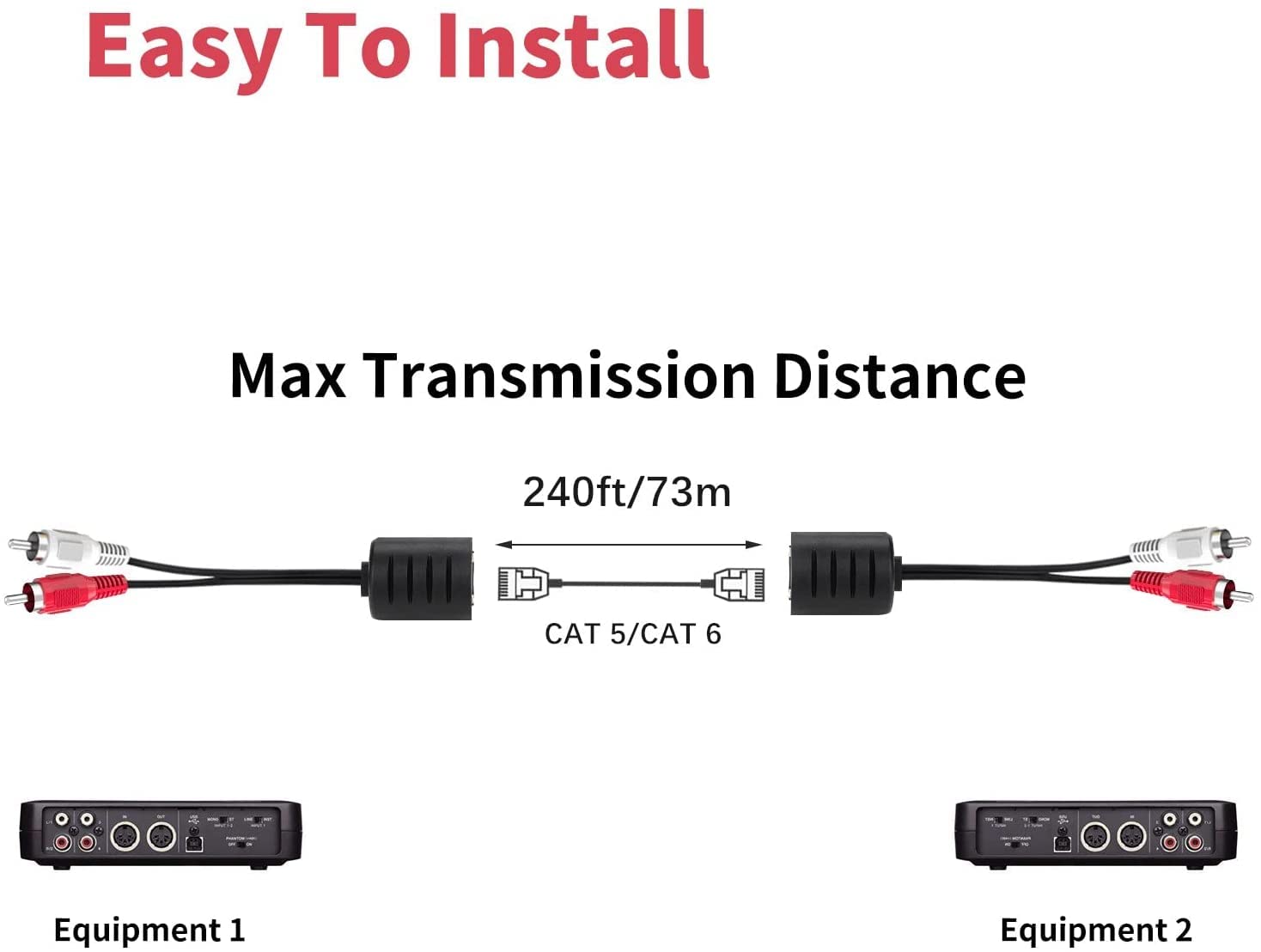

Many new homes already contain structured cabling systems of inexpensive cat 5 twisted pair cable. Now you can take advantage of this existing wiring by adding these stereo audio balun to each end, and transmits analog audio over inexpensive twisted pair wiring up to 240 ft., rather than rewiring your home in order to send these signals from room to room. And, they are designed to work in pairs, and provides a low-cost, versatile cabling solution for stereo audio distribution by utilizing a building’s existing structured cabling system.

Is Discontinued By Manufacturer ‏ : ‎ No
Package Dimensions ‏ : ‎ 9.65 x 2.36 x 1.02 inches; 3.17 ounces
Item model number ‏ : ‎ Stereo RCA To Stereo RCA Audio Extender
Date First Available ‏ : ‎ May 28, 2013
Manufacturer ‏ : ‎ HdtvHookup
ASIN ‏ : ‎ B00D2172MS
Country of Origin ‏ : ‎ Taiwan

Set of 2 audio baluns – 1 receiver and 1 transmitter
Maximum of 240 ft cable length
For analog stereo audio – Standard Red White connectors
Bi-directional so each end can either transmit or receive
Easy Installation – Plug and play
