VSDISPALY 12.6 Inch IPS 1920×515 FHD LCD Screen Supports Mini HD-MI Video Input Second Monitoring for D41 Computer PC Case DIY Extra LCD Display

Price: $149.00
(as of Jun 17, 2024 00:44:32 UTC – Details)

Specifications:
Case: Metal
Screen Size: 12.6 inch

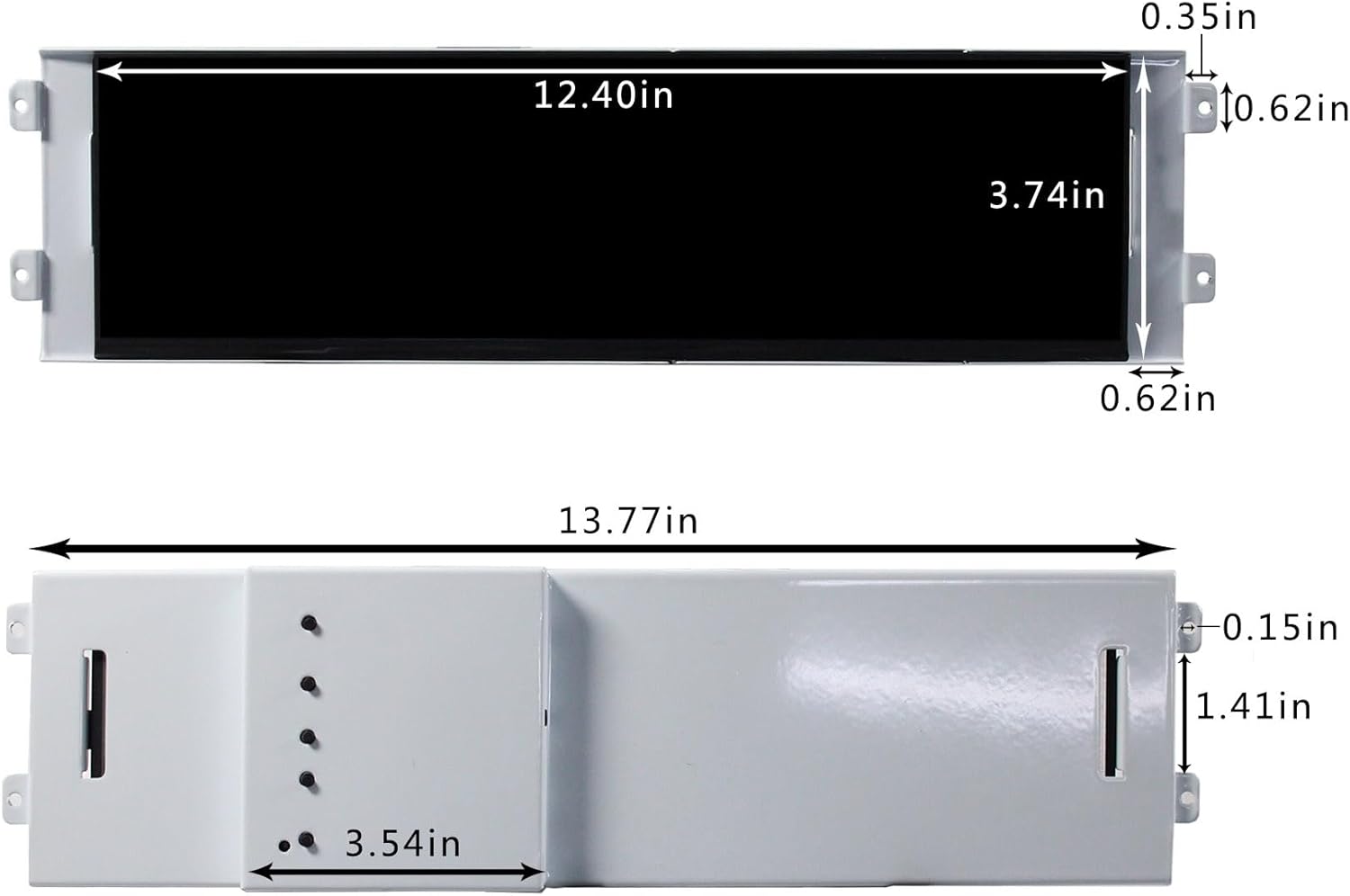

Outline Size 370×97×19(H×V×D)mm
Display Area 309.31×82.97 (H×V)mm
Aspect Ratio: 15:4
Resolution 1920(RGB)×515
Screen Brightness: 400cd/m2
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left/Right/Up/Down]
Response Time: <30ms

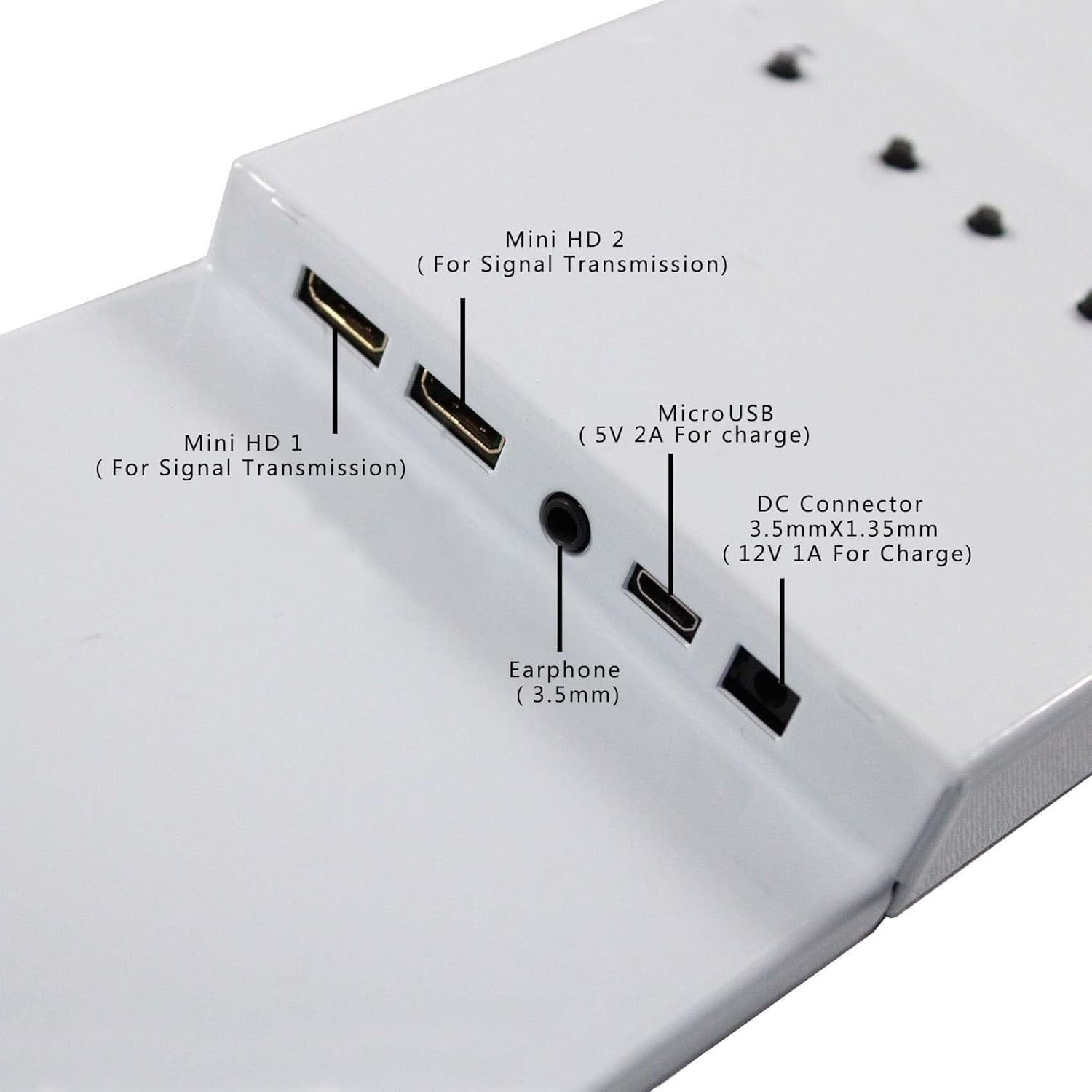

Video Input: 2x Mini HD-MI
Video Output: Speaker Earphone
Standby Model <0.3W
Operating Temperature: -10 degree to 60 degree
Storage Temperature: -30 degree to 70 degree
Weight: 0.42kg/0.93LBS


Power Supply:Supports input power by DC connector OR micro USB
When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.
Micro USB output 5Vdc 500mA.
When use Micro USB as input. Power Supply Input Voltage 5Vdc.
When use 5Vdc as input. Power Supply Input current more than 2A.
When use 12Vdc as input. Power Supply Input current more than 1A.


Packing list:
1× 12.6inch 1920×515 LCD Kit (Included HD-MI LCD Controller Board) For D41 Computer Case LCD Screen
1× 4Pin Power Cable (Red Cable is 12Vdc and Black Cable is GND)
1× HD-MI Cable
【12.6” LCD】12.6 in 1920×515 stretched bar LCD display;Screen Brightness: 400cd/m2;Contrast Ratio 1200:1 (Typ.) (TM)
【Size Details】Outline Size 370×97×19(H×V×D)mm;Display Area 309.31×82.97 (H×V)mm
【IPS Panel】Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left/Right/Up/Down];178 degree full viewing angle,bring you better visual experiment,clear and vivid

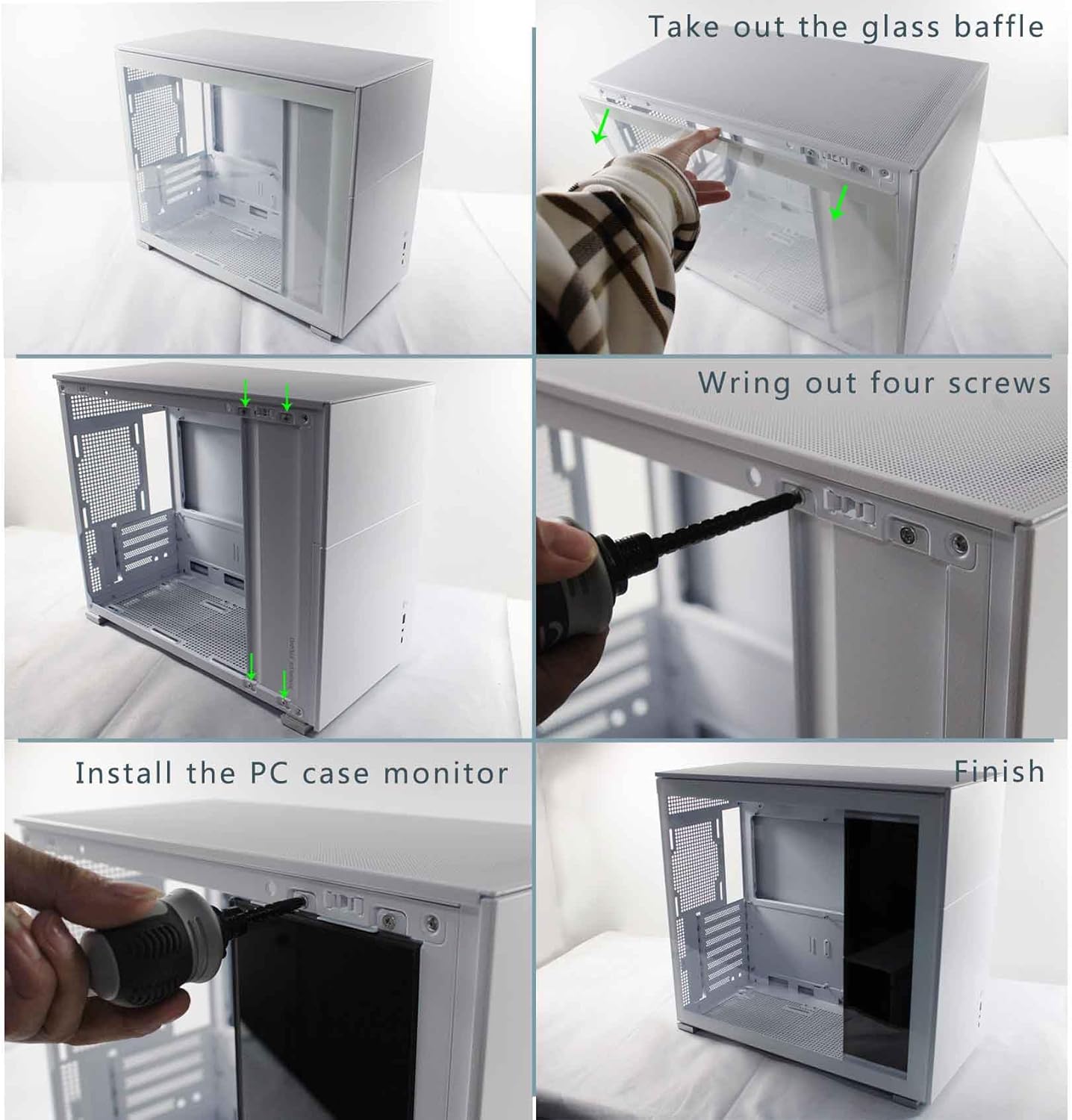

【Easy to Use】12.6” LCD monitor comes with metal case(White case),a power cable and a HD-MI signal cable,which can help you install in pc case more convenient
【Application】Fit for DIY a monitoring extend display of D41 pc case’s CPU/GPU,computer health speed
